FLEXIBLE AND EXPANDABLE
For Live Sound, Presentations and Installations

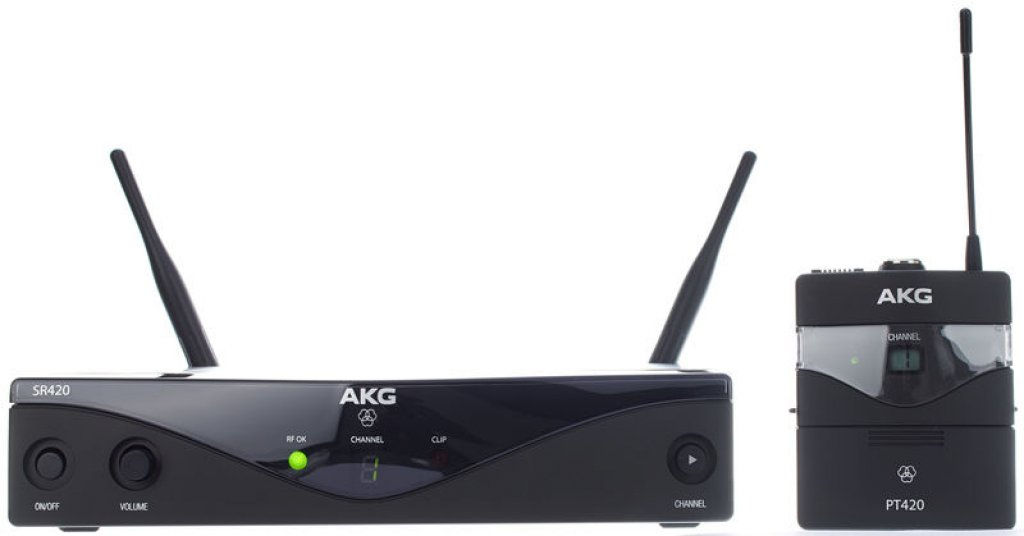

WMS420 is a professional multi-channel wireless microphone system with pilot tone transmission to prevent unwanted noise. The Instrumental Set includes a PT420 body-pack transmitter in a compact and rugged housing providing supreme audio quality for demanding guitars and e-basses. The space diversity receiver offers both a microphone level and a line level output.

Specifications:
1 x Bodypack transmitter PT420

1 x Stationary receiver SR420

1 x Instrument cable

2 x Receiver antennas

1 x AC adapter

Diversity system
Antenna switching
RF output
10, 20 or 50 mW (depending on frequency band)
Audio bandwidth
40 to 20 000 Hz (%2B/- 3dB)
Tuning range
Up to 30 MHz (depending on frequency band)
Max. channels
Up to eight compatible channels within one frequency band
Frequency selection
Fixed frequencies
Modulation
FM
Radio range (Line of Sight)
30 meter (with external antennas further distances achievable)
Rack size
%C2%BD Racksize (19")
Dimensions
150 x 44 x 200 mm
