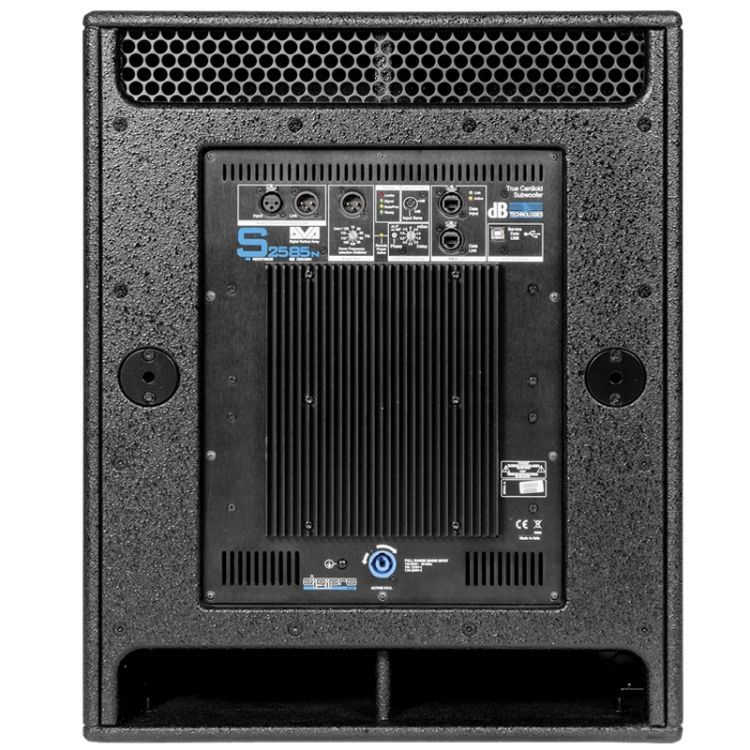

DVA S2585N
The DVA S2585N is a compact subsystem featuring a cardioid layout designed for utmost directivity. The system consists of two separate chambers, one loaded with a forward facing 18“ woofer and another with a rearward facing 15" woofer.

Product Specs
System
Active 2-Amps
Type of Amplifier
Digital - Class D (DIGIPRO G2 technology)
RMS Power
2500W
Musical Power
5000W
Frequency Response +/-3dB
35 -120Hz
Crossover LF-MF (Low-Mid)
75 - 120Hz (5Hz steps) selectable
Sound Pressure (SPL)
140dB peak
Component Parts
1 woofer 18" RCF - 4" coil (frontal) 1 woofer 15” RCF - 4” coil (rear)
Input Sensitivity Nominal
0dBu
Input Impedance Balanced
20Kohm
Input Impedance Unbalanced
10Kohm
Power Supply
Full range 100Vac -240Vac, 50-60Hz con PFC
DSP
Analog Device 56 bits
Audio Conversion
24 bit / 96kHz S/N=116dB
Volume Control
Digital
Box Material
Birch plywood, black painted orange peel
Housing Shape
Rectangular
Handle
3 x side
Front Grille
Performed sheet 1.5mm with internal foam
Dimension (WxHxD)
515x640x1000mm
Weight
65Kg
