dB Technologies FMX15

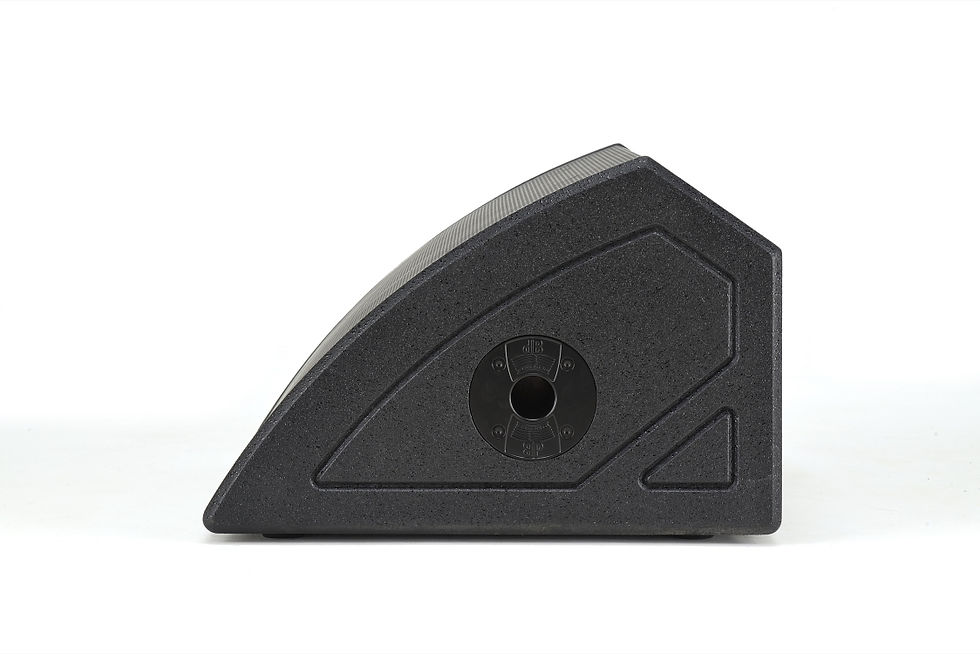

dB Technologies FMX15 Wedge Monitor
The  dB Technologies FMX15 is a Wedge Monitor and the successor of the popular FM Series and consists of a family of extremely assertive Stage Monitors in a coaxial design with precise dispersion characteristics. FM Series Monitors are equipped with the latest DSP with FIR filtering.
The FMX Series are Active 2-Way Coaxial Stage Monitors comprising 3x models (10”, 12” and 15") equipped with 400 RMS (FMX10) or 600 RMS (FMX12 & 15) Class-D Amplifiers. The Monitor's Coaxial Acoustic Design, custom Horn Design and advanced DSP linear phase FIR Filters provide a smooth, intelligible sound.
In addition, 8x on-board Pre-Sets optimize the EQ for different requirements and make the FMX an easy-to-use tool for the user. All FMX Series Monitors feature a unique front and rear Grille Design, an integrated Handle on the underside of the Case, and a 36mm Tripod Mount.

The main features of the dB Technologies FMX15 Wedge Monitor include:
1200W Active 2-Way Stage Monitor
46Hz-19kHz Frequency Response
Speakers: 15” LF & 1” HF
Class-D Amplifier
8x System Pre-Sets
24-bit/48Hz AD/DA Converter
Maximum SPL: 128dB
Plywood Housing
Dimensions (WxHxD): 500 x 340 x 500mm
Weight: 16.9kg

Features:
Manufacturer: dB Technologies
Typ: Monitor
Signal Processing: Active
Size of Woofer (Inches): 15
Size of Tweeter (Inches): 1
max. Peak SPL (dB): 128
Weight (kg): 16.9
Housing Material: Wood
Frequency Response from (Hz): 46
Frequency Response to (Hz): 19000
Height (mm): 340
Width (mm): 500
Depth (mm): 500
