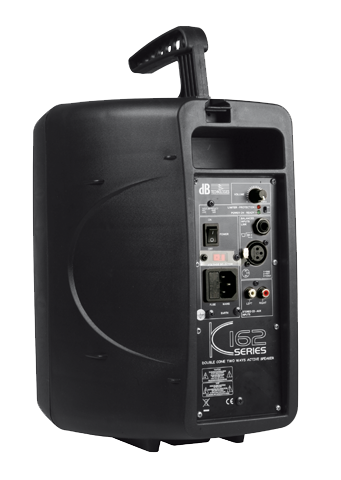

2-Way Active Speaker 2 x 6.5″/Tweeter 65W
The K-Series is range of compact active speakers for versatile applications like mobile use or fixed installations. The K162 has a multifunctional housing with a special shaped backside for monitor use.
The detailed input-section provides XLR- and Jack inputs with switchable Mic-/Line-sensitivity and an additional RCA Stereo-Input which is independent from the volume-control, to allow small setups, e.g. one Microphone CD-Player without an additional mixer.
The K162 offers a perfect sound and a high SPL at a very compact size and light weight. Driven by the integrated 65W/RMS amplifier, the two 6,5″ Woofer and the tweeter convince by a high SPL of 110 dB and a wide range of response from 85 – 19.000 Hz.

Technical data
Speaker Type: 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 85 – 19.000 Hz
Max SPL: 110 dB
Type HF: Tweeter
LF: 2x 6.5 “
Amplifier
LF Amp: 65 W/RMS
Cooling: Convection
Processor
Controller: Analog
Limiter: Soft Clip
Input Section
Signal Input: 1x XLR
1x 6.3mm phone jack
1x RCA cinch
Microphone Input: Yes
Signal Output: 1x XLR
1x 6.3mm phone jack
1x RCA cinch
Power Socket: VDE
Mechanics
Housing: Polyporpylen PP
Housing Design: Multifunctional
Colour: Black
Handles: 1x on back (slot)
Optional handle on top
Pole Mount: Optional
Tilt Unit: Optional
Front Grille: Metal, 1mm with acoustical foam
Rigging Points: 4x M5
Width: 210 mm (8.4 in)
Height: 350 mm (14 in)
Depth: 270 mm (10.8 in)
Weight: 5.5 kg (12.13 lbs)
