2-Way Active Speaker 5″/Tweeter 50W

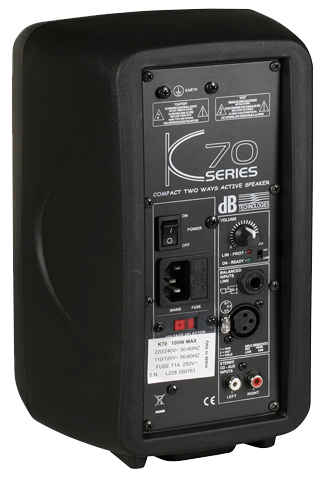

The K-Series is range of compact active speakers for versatile applications like mobile use or fixed installations. The K70 has a multifunctional housing with a special shaped backside for monitor use.
The K70 is equipped with a 5″ Woofer and a tweeter. The integrated amplifier provides 50W/RMS and is equipped with an integrated Limiter for maximum reliability.

Technical data
Speaker Type: 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 100 – 18.000 Hz
Max SPL: 101 dB
Type HF: Tweeter
LF: 5 “
Amplifier
LF Amp: 50 W/RMS
Cooling: Convection
Processor
Controller: Analog
Limiter: Soft Clip
Input Section
Signal Input: 1x XLR
1x 6.3mm phone jack
1x RCA cinch
Microphone Input: Yes
Signal Output: 1x XLR
1x 6.3mm phone jack
1x RCA cinch
Power Socket: VDE
Mechanics
Housing: Polyporpylen PP
Housing Design: Multifunctional
Colour: Black
Handles: 1x on back (slot)
Optional handle on top
Pole Mount: Optional
Tilt Unit: Optional
Front Grille: Metal, 1mm with acoustical foam
Width: 170 mm (6.8 in)
Height: 270 mm (10.8 in)
Depth: 185 mm (7.4 in)
Weight: 3.5 kg (7.72 lbs)
