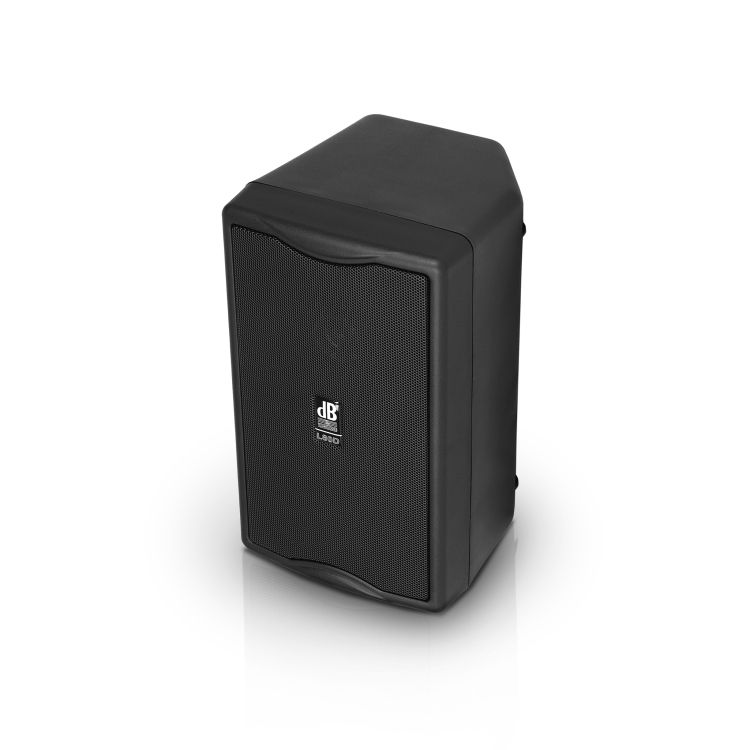

dB Technologies MONO BOX L 80 D is active, mobile and compact speaker system with switchable microphone or line input, DSP integrated functions, and high-performance amplifiers with DigiPro dual 4 "woofers.
Big things come in small packages!
MINI BOX L 80D is the perfect solution for those looking for optimal performance and availability of professional features, combined with the most compact and small size. With dimensions only 26x18x15 cm, dB Technologies MINI BOX L 80D is an extremely compact system, but at the same time meets all the expectations that can provide active speaker system.
Independent line and microphone channels, and built-in DSP
Near the line stereo input (stereo RCA) is also located XLR microphone input for connection, directly to the speaker. Both input channels also have independent volume controls. Onboard DSP provides a variety of optimized audio settings for different applications. When applied as a studio monitor, stage monitor, in live performances, just as a vocal amplifier, or for background music - this small monitor will always offer the correct DSP profile for any possible situation. Line output allows you to connect additional speaker systems - it also makes, dB Technologies MINI BOX L 80D, suitable for large setups.
Transparent sound without changing the phases through coaxial speaker concept.
Despite its compact size, MINI BOX has no reason to hide from their older brothers and sisters. dB based on double soglosovanie 4 "woofers, just as is done in an expensive system line array high-frequency driver is integrated with one of the two 4." woofer - this coaxial design enables optimized and directed radiation that gives a a number of advantages: c the one hand, despite its small size, even a big room yavlyaetsya not a problem, on the other hand, most of the acoustic performance of the system does not affect the clarity and purity of sound. Woofers swing digital, high-quality, the DigiPro amplifiers, Class D, which provide a balanced and above all reliable sound.
A small column, a lot of talent!
The use as a studio or stage monitor, mobile sound system for vocals or speech, background music or for DJ monitoring as a combo amp for keys or as a small solution for playing in open spaces - with dB Technologies MINI BOX L 80D you get super-compact, completely self-contained, multi-functional solution for scoring.
Various embodiments of accessories:
There is a large selection of accessories for MINI BOX L 80D. With the wall holder "WB-03" speaker system can be mounted directly on the wall. With "WB-11" MINI BOX speaker system can be equipped with a flange. "SN 130" is a practical microphone stand adapter.

Active acoustic system with two 4-inch compact speakers in one of which a high frequency driver is built
Coaxial concept with the correct phase emissions
80 Watt, DigiPro, Class D amplifier
Angles audio speaker coating: 85 ° x 75 °
The maximum sound pressure: 112 dB
Microphone and line inputs with separate volume controls
DSP presets for various applications
Compact size and light weight, only 3.7kg
Multifunctional housing - it can also be used as a floor monitor

Features:
Manufacturer: dB Technologies
Typ: Coaxial
Signal Processing: Active
Size of Woofer (Inches): 4
Size of Tweeter (Inches): 4
Power Output in W(RMS) @8Ohm: 80
max. Peak SPL (dB): 112
Weight (kg): 3.75
Housing Material: Plastic
Multi-Function Housing: Yes
Airworthy: Yes
Beam angle: 75°
Frequency Response from (Hz): 90
Frequency Response to (Hz): 20000
Crossover Network: No
EQ: No
Link: Yes
Input: Cinch
Output: Jack
Integrated Mixer: No
Mic Input: 1
WLAN: No
Bluetooth: No
Battery operation: No
RJ45 Interface / Network: No
Height (mm): 265
Width (mm): 155
Depth (mm): 180
incl. Stand: No
incl. Cover: No
