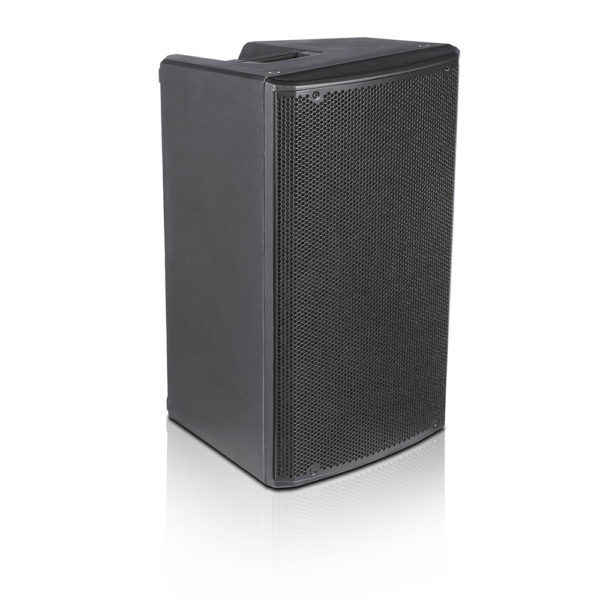

15″ 2 Way Active Speaker
With the new OPERA series, dBTechnologies succeeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.
Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymmetrical vertical dispersion and a double horizontal dispersion, ensuring an optimised throw pattern.
The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

1200 w peak power
Newly designed asymmetrical horn
Advanced DSP with FIR processing
2 input channels (mic-line/mic-instr)
Selectable output channel (link ch1/mix ch 1+2)
8 EQ presets

Technical Data
Speaker Type: 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 50 – 20.000 Hz
Frequency Response [- 3dB]: 56 – 19.000 Hz
Max SPL: 130 dB
HF: 1″ Exit, 1.4 v.c.
Type HF: Compression driver
Horizontal Directivity: 100° (85° up/120° down)
Vertical Directivity: 85° (+ 25°/-60°)
Horn: Asymmetrical Horn
LF: 15″, 2″ v.c.
Amplifier
Amp Technology: Amp SMPS Power supply dual range
Amp Class: Class D
RMS Power: 600 W
Peak Power: 1200 W
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 KHz
System Presets: Rotary Encoder (8 Presets)
X-Over Frequency: 1800 Hz
Limiter: Peak, RMS, Thermal
Advanced DSP Functions: Linear Phase FIR Filters
Input
Signal Input:
1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output:
1x XLR Male (CH1 Link/Mix OUT)
Selectable
Mechanics
Housing: Polypropylene with internal frame
Grille: Full grille
Handles: 1 on left Side, 1 on Top
Rigging Points: 2XM10 on Top + 1x M10 on Back
Pole Mount: D36 mm

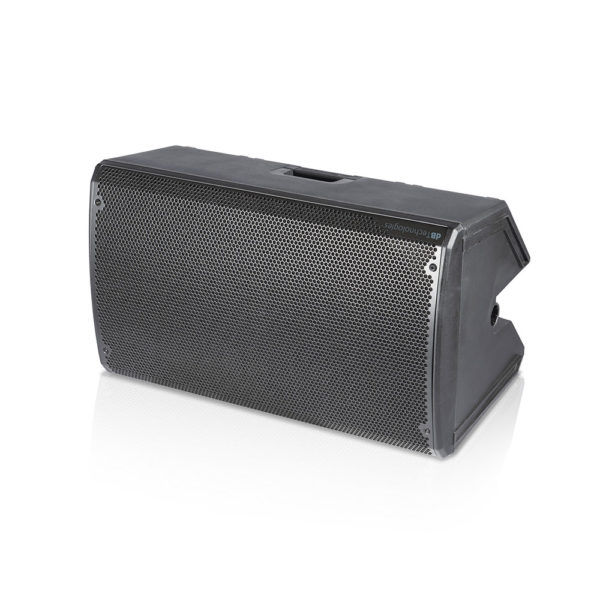

Angles up: Monitor use 45°
Width: 420 mm (16.54 in)
Height: 722 mm (28.43 in)
Depth: 419 mm (16.50 in)
Weight: 18.3 kg (40.34 lbs)
