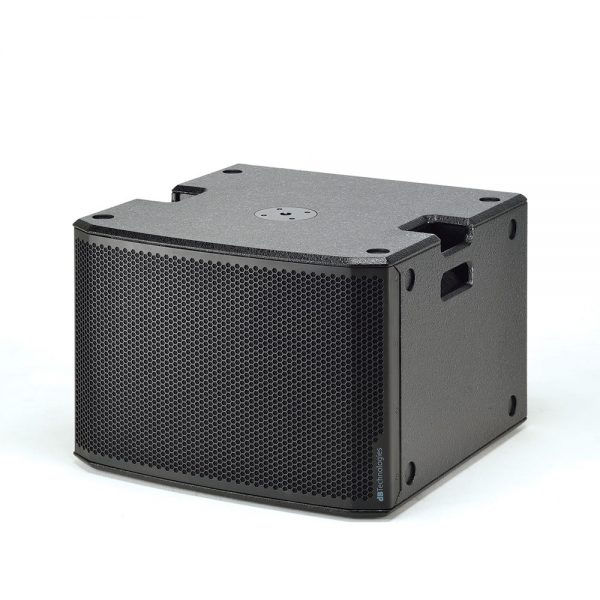

Active 15″ Subwoofer
Designed for ground stacked applications, SUB 900 is the perfect choice whenever a powerful lower extension is required.
SUB 915 is equipped with a single premium 15″ woofer housed in a bass-reflex design.
A 900 W RMS Class D Digipro G3 power amplifier ensures advanced efficiency as well as forcible sound pressure levels.
SUB 915 is enabled for real time monitoring and remote control via RDNet protocol and Aurora Net software (Windows and Mac), allowing advanced subwoofer configurations alongside with perfect low-end matches with dBTechnologies’ full-range systems enabled to RDNet communications.
Both models of the family also feature on-board controls for attenuation, a polarity switch and DSP controls for a delay up to 4.5 milliseconds with 0.5 milliseconds steps (while a maximum 21 ms delay is allowed via Aurora Net). A second rotary allows to set crossover frequency from 70 to 110 Hz.
The robust plywood cabinet encases high-end performances in limited weight (34.8 kg) and features 2 integrated handles on the top edges, while the back side is equipped with wheels mounting for smooth transportation.
What is more, being designed for both vertical or horizontal use, 2 M20 mounts on the top and side panels permits any type of full-range speaker led using a standard M20 threaded pole.

Active Bass-reflex Subwoofers
900W RMS Digipro G3 Amp
Up to 133 dB SPL
Real time control via RDNet
On-board delay control
On-board crossover point control
Designed to work vertically or horizontally
Integrated top-edge handles
2x M20 threads on top and side

Technical Data
Speaker Type: Active Subwoofer
Acoustical Data
Frequency Response [-10dB]: 42 to cut frequency (Xover dependent)
Max SPL (1 m): 133 dB
LF: 15″
LF Voice Coil: 4″
Amplifier
Amp Technology: Digipro G3
Amp Class: Class D
Peak Power: 1800 W
Processor
Controller: 28/56 bit DSP
AD/DA Converter: 24 bit/48 Hz
Limiter: Peak, Thermal, RMS
Crossover Frequency: Variable (70Hz – 80Hz – 90 Hz – 100Hz – 110 Hz
Controls:
1x Subwoofer Atteniation Control
1x Delay Rotary
1xXover Rotary
1x Polarity Switch
Input
Signal Input:
1x XLR female
1x USB (data service)
Signal Output:
2x XLR male
Mechanics
Housing: Plywood
Handles: 2 (1x side)
Pole Mount: 2x M20 (1 on top + 1 on side)
Width: 620 mm (24.4 in)
Height: 457 mm (17.9 in)
Depth: 620 mm (24.4 in)
Weight: 34.8 kg (76.7 lbs)
Note: Data is not binding; dBTechnologies reserves the right to modify data at any time and without prior notice.
