With the SYA series presents dB Technologies versatile 2-way active speakers. The SYA systems combine efficiency with professional sound quality and feature Bluetooth® connectivity, three INPUT channels, impressive SPL, and a powerful DSP for highly accurate sound reproduction.
The SYA series consists of 3 models, each equipped with 10", 12" and 15" woofers and 1" compression drivers (1" voice coil for SYA 10 and 1.35 voice coil for SYA 12 and 15).

Features
Active 2-way speakers
Bluetooth connection
3 input channels
1 Link OUT with Link/Mix switch
Linear phase FIR filters for precise sound reproduction
DSP -Presets for great versatility
Softcover included

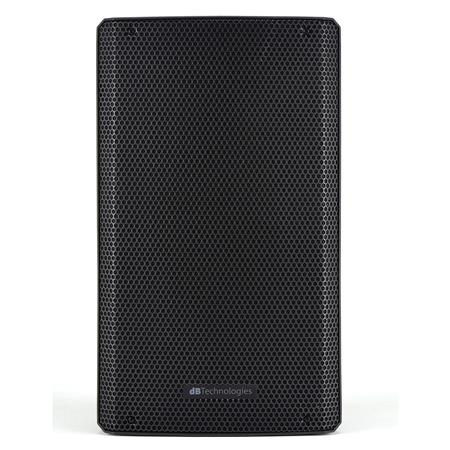

The dB SYA 12 is equipped with a 12" woofer and a 1" compression driver. The system is powered by a powerful and efficient 740W amplifier and the advanced DSP one from dBTechnologies.
The system's FIR filters provide coherent audio performance that is consistent and crystal clear from any listening position. In addition, the user can use presets to make acoustic adjustments to the sound reinforcement situation.
The speaker has 3 input channels with independent level control:
CH 1 is a balanced combination of XLR/6.3 mm jack/microphone input with a source select switch;
CH 2 is a balanced XLR and TRS IN jack;
CH 3 enables a connection to an external player via Bluetooth®.

A balanced XLR-M output allows connection to a second speaker or mixer. It can be selected which signal is sent to the main output: LINK (the signal is recorded before each level control) MIX (the signal is determined by the level control of each channel and main).
The solid and versatile SYA Series speakers feature a clear and contemporary full grille design that enhances both portability with integrated handles (1x side and 1x top) and multifunctionality: each speaker can be used horizontally as a stage monitor (on both sides) and has a tripod mount with 2 tilt angle options (0° and 7.5°) to operate SYA on a tripod or stacked on dBTechnologies Subs.

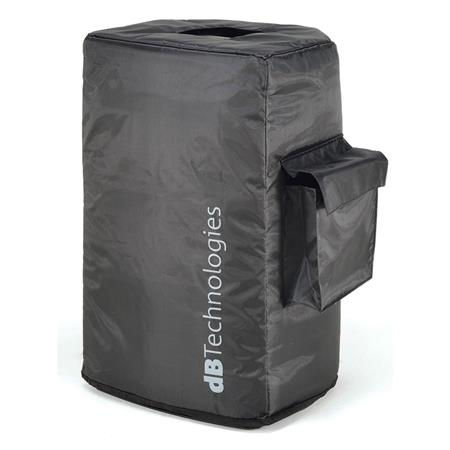

All SYA models are delivered with soft covers, which are additionally equipped with a pocket to store cables.

Technical data
Acoustic data
Speaker type: 2-way active speaker
Frequency range[-10dB]: 60 - 20,000 Hz
Max SPL: 127 dB
HF: 1" (1") CD, 1.35"v.c.
NF: 12", 2.5" v.c.
Spread: 90° x 60°.
Crossover frequency: 1800 Hz (24 dB/oct.)
amplifiers
Amplifier technology: Class D(LF)+Class AB (HF)
Power peak (LF+HF): 800 W
Processor
Controls: 1x volume, 1x slide switch microphone/line
Display: Power On/Signal/Limiter LEDs
Controller: DSP 20/56 Bit
AD/DA converter: 24 bit/ 48 Hz
System defaults: Playback, flat, bass amplification, wedge
Limiter: Peak, RMS, Thermal
Advanced DSP functions: Linear phase FIR filters
input
Signal inputs: 1x Combo(XLR/Jack) Mic/Line 1xXLR/TRS
Bluetooth Input: 1x Bluetooth Receiver
SIGNAL output: 1xXLR connector (LINK/MIX)
mechanics
Housing: Polypropylene
Handles: 3 (2 on page 1 above)
Angle upwards: Monitor insert 45°.
Mast mounting: 36 mm, double positioning
width: 365 mm
height: 622 mm
Depth: 342 mm
weight: 16,5 kg

Features:
Manufacturer: dB Technologies
Typ: Head
Signal Processing: Active
Size of Woofer (Inches): 12
Size of Tweeter (Inches): 1
max. Peak SPL (dB): 127
Weight (kg): 16.5
Housing Material: Plastic
Frequency Response from (Hz): 60
Frequency Response to (Hz): 20000
Input: XLR/Jack
Output: XLR
WLAN: No
Bluetooth: Yes
Battery operation: No
RJ45 Interface / Network: No
Wheels included: No
Height (mm): 62.2
Width (mm): 36.5
Depth (mm): 34.2
incl. Stand: No
incl. Cover: Yes
