A reborn classic
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.
Combine the PLX-1000 with your DJM mixer for the ideal set-up for turntablists and vinyl enthusiasts.
There will be just 1,000 PLX-1000-Ns worldwide, each bearing a plate engraved with its individual serial number – a chance to get your hands on a truly unique set-up.

Key features
Turn the tables
The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
Excellent sound design
The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
Pick up the pace
Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

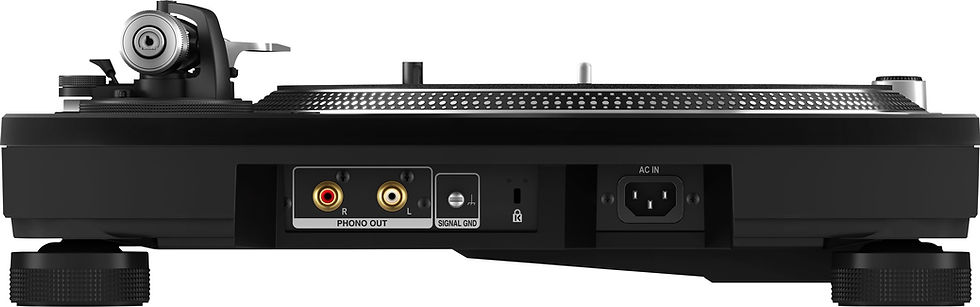

Flexible connectivity
Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

Specifications
Main Features
What's in the Box
PLX-1000
Power cord
Audio cable
Ground wire
Adapter for EP record
Turntable sheet
Slip mat and sheet
Dust cover
Head shell
Balance, sub and shell weights
Operating instructions
Specifications
Width
453 mm
Height
159 mm
Depth
353 mm
Weight
14.6 kg
Turntable
Drive Method
Quartz lock, servo-type, direct drive
Platter
Aluminium, die-casting diameter: 332 mm
Motor
3-phase, brushless DC motor
Braking System
Electronic brake
Rotation Speed
33⅓-45 rpm
Rotation Adjustment Range
±8, ±16, ±50 %
Wow and Flutter
< 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)
Signal-to-Noise Ratio
70 dB
Starting Torque
> 4.5 kgf・cm
Start Time
Within 0.3 sec (at 33⅓ rpm)
Tone Arm
Arm Type
Universal type S-shape tone arm
Gimbal-supported type bearing structure
Static balance type
Overhang
15 mm
Effective Length
230 mm
Tracking Error
Within 3°
Height Adjustment Range
6 mm
Stylus Pressure Variable Range
0-4 g (1 scale 0.1 g)
Proper Cartridge Weight
2.5-12 g (includes mounting materials)
Terminals
Outputs
1 ANALOGUE (RCA)

* The specifications and design of this product are subject to change without notice.
