Natural Expression
The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.

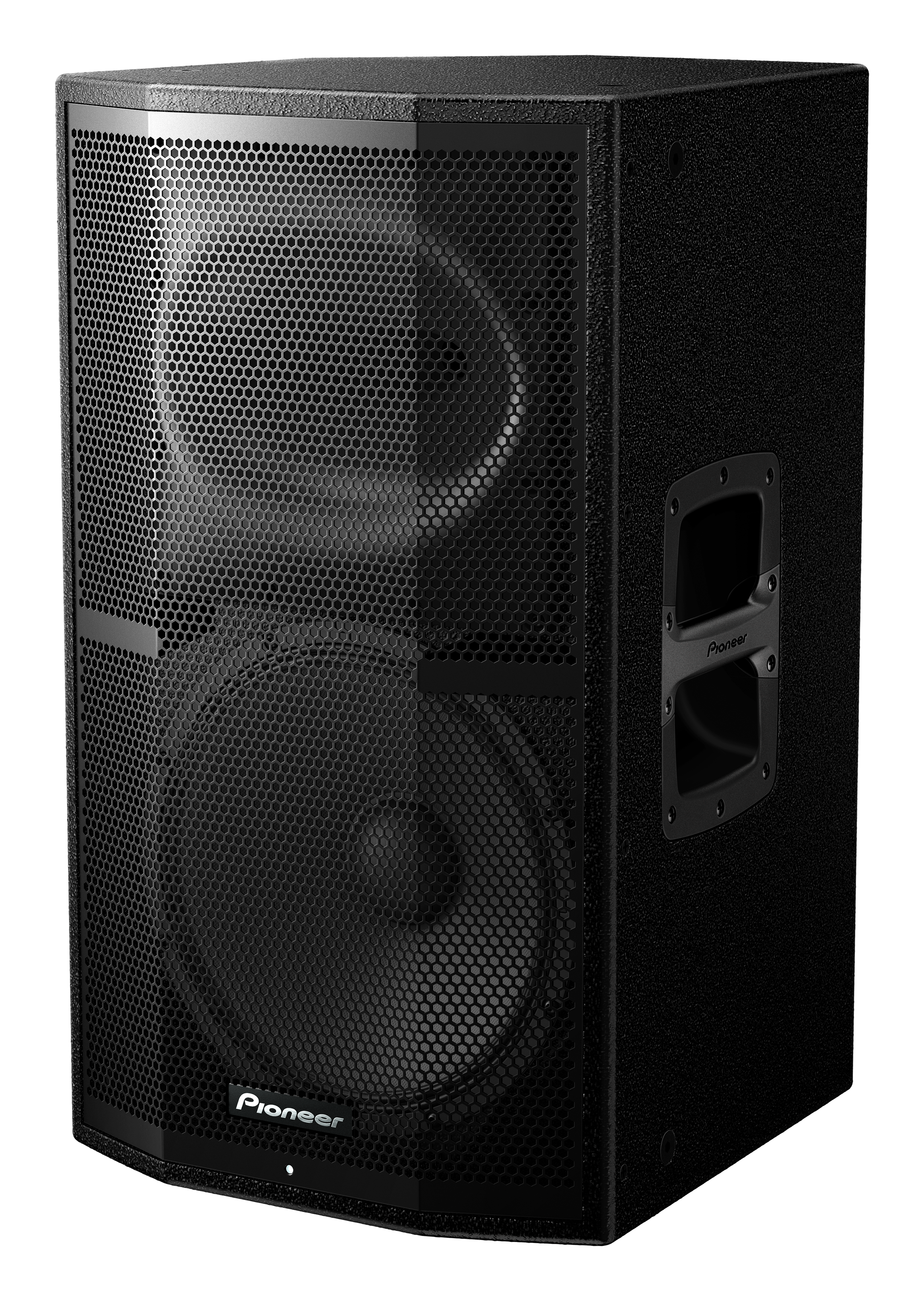

The XPRS12* compact 12-inch speaker fill the room with a dynamic, natural sound thanks to their plywood enclosures and high-performance drivers.
*The XPRS12 is sold as a single speaker.

Key features
Natural, full-range sound
The 15-mm birch hardwood cabinet, 12-inch ferrite LF driver and 1.75-inch titanium diaphragm compression driver produces a natural, full-range sound with low distortion, even at high volumes.
Powersoft Class D amps
Powersoft’s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.
AFAST acoustic tube
Pioneer Pro Audio’s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs only the standing waves, increasing the low-to-mid frequency response.
4 EQ modes
Adapt to a variety of genres and environments using the rotary selector switch on the back of the speaker to give you instant access to 4 EQ modes: Flat, Bass +, Speech and Wedge.
Learn more
Advanced protection
The XPRS speaker is packed with features to protect the drivers, amp and power supply in to Amplifier module – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.
Flexible connectivity
2 balanced XLR/TRS combo sockets and an unbalanced RCA connection mean you can connect at the same time a Mic and other devices, such as line-level mixers or portable audio players. 2 balanced XLR through outputs let you connect easily to other speakers and subs.
Rotatable horn
Adjust to any space with horns that can rotate 90 degrees and give a dispersion of 90 x 60 degrees, giving you flexibility to mount the speaker vertically and horizontally.
Choose your set-up
Place the wedge-shaped speaker as a foldback monitor on stage, use the rigging points to mount it to the ceiling or wall, or set the pole mount socket straight or tilted to 7 degrees to direct the sound exactly where you want it.
Designed for the road
The durable, birch plywood enclosure keeps your PA speaker safe, while carefully placed handles take the hard work out of transit and set-up.
Auto-ranging power supply
Plug in the XPRS Series anywhere in the world – including venues with generators or temporary power supplies. They will detect and adapt to the voltage without compromising the sound quality.

Specifications

Main Features
What's in the Box
XPRS 12 x 1
Powerd cord
Installation and Operation Manual
Important Safety Precautions
Specifications
Supported voltages
100 V (50 Hz/60 Hz)
110 V to 240 V (50 Hz/60 Hz)
Width
380 mm
Height
647 mm
Depth
398 mm
Weight
23.1 kg
Frequency Range
50 - 20000 Hz
System characteristic
Dispersion
90° x 60° (rotatable)
Maximum Sound Pressure
135 dB
Cross Over Frequency
2 kHz
Terminals
Inputs
2 XLR/TRS Combo (balanced)
2 RCA (unbalanced)
Outputs
2 Through output XLR (balanced)
1x Mixed output XLR (balanced)
Amplifier
Amplifier Output
Class D
2400W peak / 1200W cont. (LF800W / HF400W)
Impedance
10 kΩ
Speaker
Driver
12-inch ferrite LF cone driver
1.75 inch titanium diaphragm neodymium compression driver
Finish
Black semi-matt textured
Impact-resistant
Handle
2 (on both sides)
Pole socket
35 mm socket (0°/7° multi-angle)
Rigging point
12x M10
Enclosure
15 mm birch plywood
Protection
Amplifier Protection
Thermal limiting
Over-temperature muting
Output overcurrent
Driver Protection
DC offset removal
High frequency stationary loud signals
Input voltage limiter (Peak/RMS)
Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection

* The specifications and design of this product are subject to change without notice.
